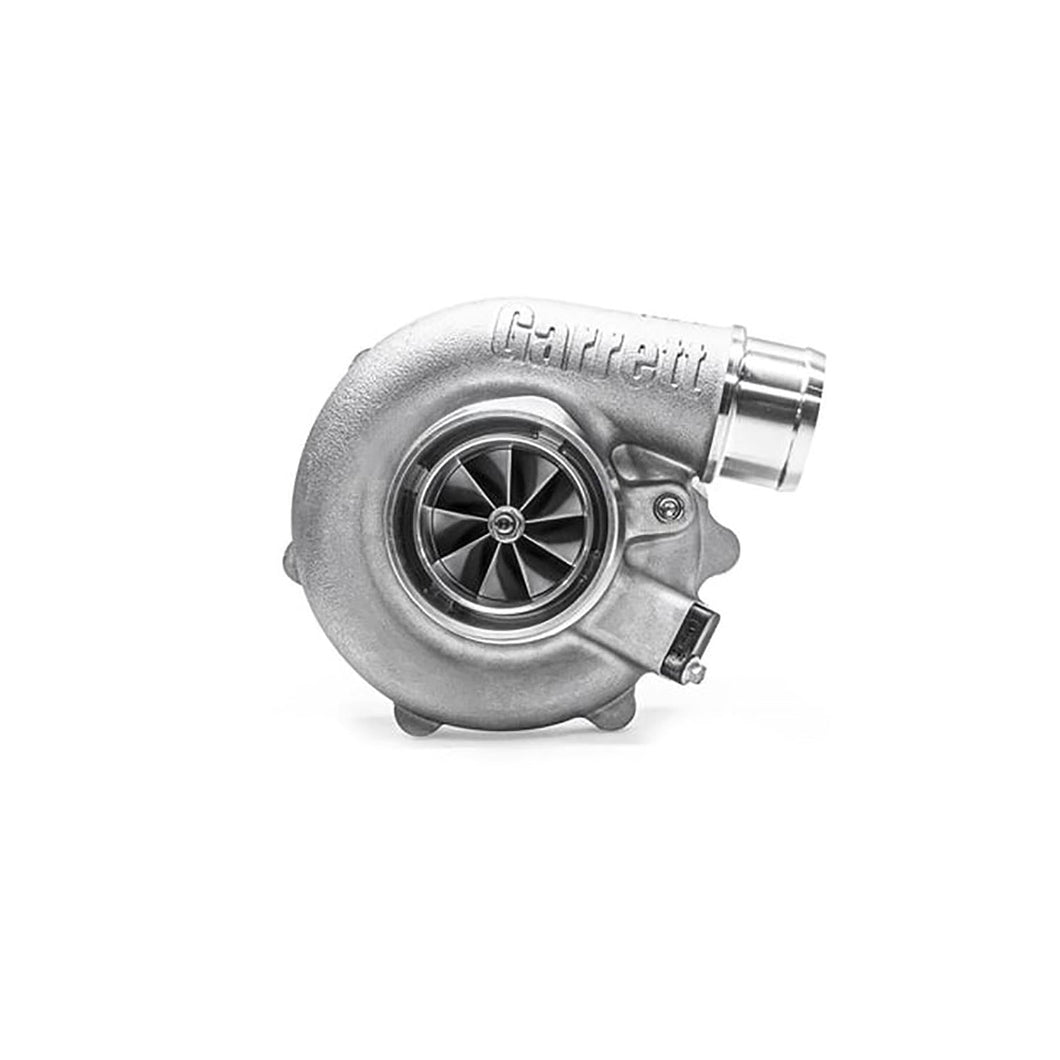

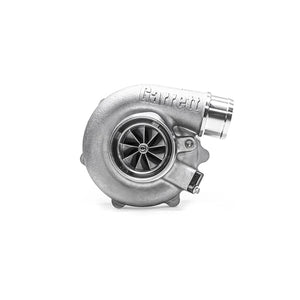

Garrett G30-660 SuperCore / Core and Cover Only

Turbo Family: G30-660
Compressor Inducer: 54mm
Compressor Exducer: 67mm
Compressor Spec: 65T
Turbine Inducer: 60mm
Turbine Exducer: 55mm
Turbine Spec: 84T
Compressor A/R: .70
Bearing Type: Ball Bearing
Bearing Cooling: Oil & Water

Flange Details:
Compressor Inlet Flange: 3.0" Hose
Compressor Outlet Flange: 2.0" Hose

Turbo Characteristics:
Turbo Size: Small frame
Intended Application: Low to Medium power
Suits Engine Size: 1.4 to 3 Litre
Expected Power Output: 350 to 660 HP : 260 to 490 kw
