A kit enabling wireless communication between the RF steering panel and the CAN bus (Controller Area Network), the main vehicle communication system. The set includes the necessary connections with terminals for the receiver, antenna for the receiver, RF receiver, transmitter (PCB) and a battery to power the transmitter.
RF receiver

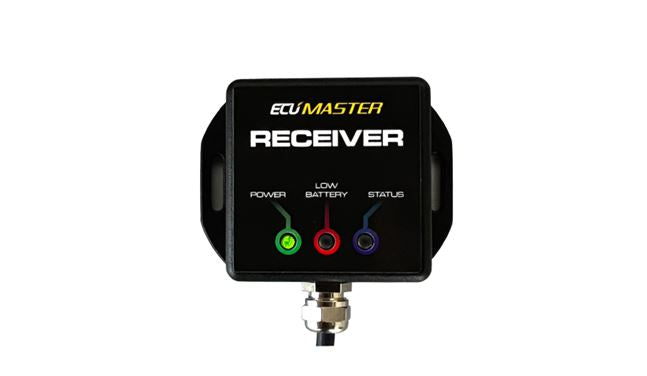

The RF receiver processes the signal received from the steering wheel's RF panel and transmits it via the CAN (Controller Area Network) bus, the vehicle's main communication system. Additionally, the RF receiver includes three status indicator LEDs, providing visual feedback on critical system parameters.

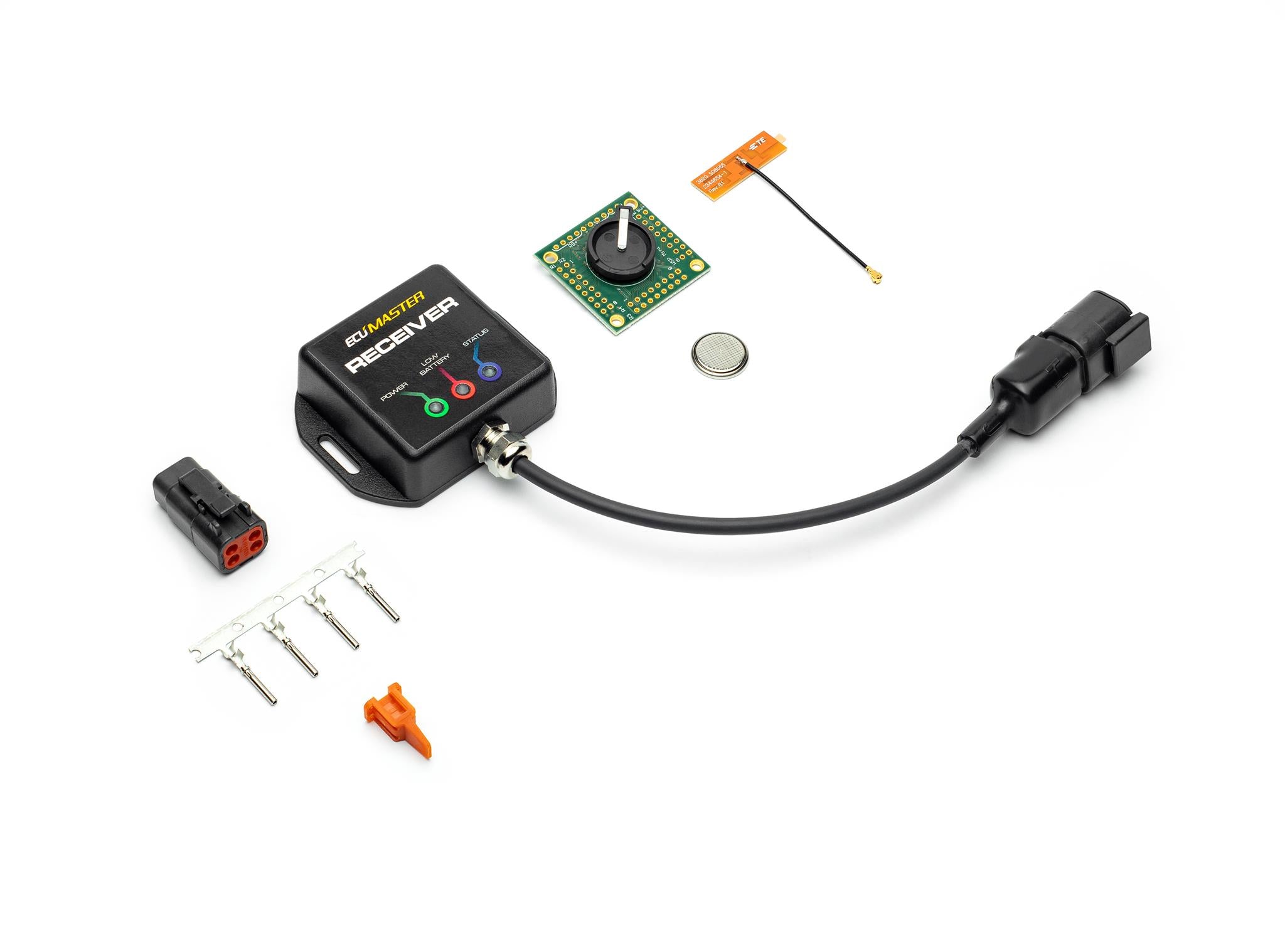

What's in the Box?
-Transmitter (PCB)
-Battery for transmitter
-Antenna for transmitter
-RF Receiver
-RF Receiver mating connector with terminals
Receiver specifications
Temperature range: AECQ GRADE3 (-40°C to +85°C)
Operating voltage: 6-22 V, resistance to transients according to ISO 7637 CAN CAN 2.0 A/B - 125, 250, 500, 1000 kbps

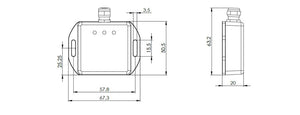

Dimensions: 68 x 50 x 20 mm
Weight: 50 g
Connector: Deutsch DTM04-4P (clamp included)
Cable length: 20 cm
Mounting mechanism: 2 x M3 screws
Number of RF steering panels supported: Up to 8
NOTE: this product is a special order item and comes from Poland, please allow 4 weeks for delivery unless otherwise advised.
