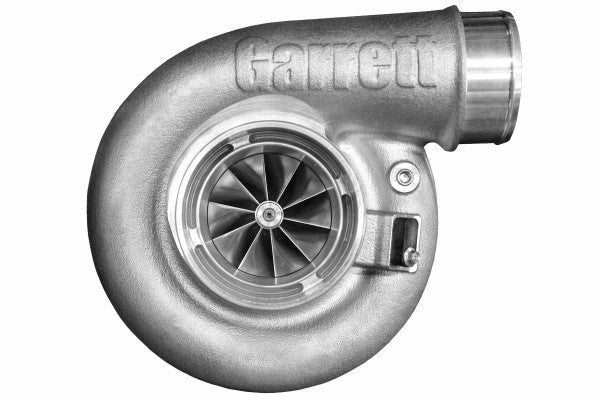

Garrett G42-1200 SuperCore / Core and Cover Only

Turbo Family: G42-1200 Compact
Compressor Inducer: 73mm
Compressor Exducer: 91mm
Compressor Spec: 65T
Turbine Inducer: 82mm
Turbine Exducer: 75mm
Turbine Spec: 84T
Compressor A/R: .85
Bearing Type: Ball Bearing
Bearing Cooling: Oil & Water

Flange Details:
Compressor Inlet Flange: 5.0" Hose
Compressor Outlet Flange: 4.0" V/Band

Turbo Characteristics:
Turbo Size: Largel frame
Intended Application: Medium to High power
Suits Engine Size: 2.0 to 7.0 Litre
Expected Power Output: 475 to 1200 HP : 355 to 895 kw
